検索に利用できるデータ型を確認
グリッドで使用できるデータ型を確認したので、検索でも同様に確認をしてみました。

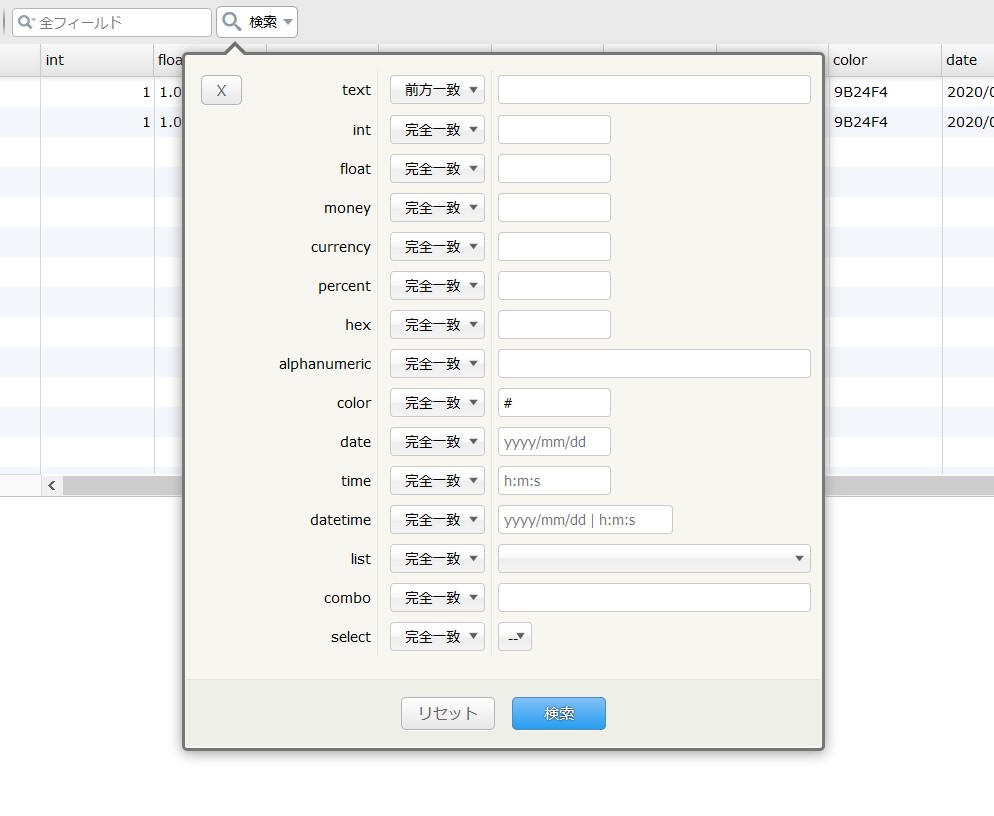

詳細検索を開いたときの画面は下記の通りです。
こちらの画面を表示するためのHTMLは下記になります。
<!DOCTYPE html>
<html>
<head>
<title>W2UI Demo: grid-14</title>
<script src="http://ajax.googleapis.com/ajax/libs/jquery/2.1.0/jquery.min.js"></script>
<script type="text/javascript" src="http://rawgit.com/vitmalina/w2ui/master/dist/w2ui.min.js"></script>
<link rel="stylesheet" type="text/css" href="http://rawgit.com/vitmalina/w2ui/master/dist/w2ui.min.css" />
</head>
<body>
<div id="grid" style="width: 100%; height: 400px;"></div>
<script type="text/javascript">
var people =[{id: 1, text: 'AAA'},{id: 2, text: 'BBB'}];
var pstyle = 'padding-right: 3px; color: #828AA7; text-shadow: 1px 1px 3px white;';
$(function () {
w2utils.locale('locale/ja-jp.json');
$('#grid').w2grid({
name: 'grid',
url: 'data/test.json',
show: {
toolbar: true
},
searchLogic:'OR',
textSearch:'contains',
searches: [
{ field: 'text', caption: 'text ', type: 'text' },
{ field: 'int', caption: 'int', type: 'int' },
{ field: 'float', caption: 'float', type: 'float' },
{ field: 'money', caption: 'money', type: 'money' },
{ field: 'currency', caption: 'currency', type: 'currency' },
{ field: 'percent', caption: 'percent', type: 'percent' },
{ field: 'hex', caption: 'hex', type: 'hex' },
{ field: 'alphanumeric', caption: 'alphanumeric', type: 'alphanumeric' },
{ field: 'color', caption: 'color', type: 'color' },
{ field: 'date', caption: 'date', type: 'date' },
{ field: 'time', caption: 'time', type: 'time' },
{ field: 'datetime', caption: 'datetime', type: 'datetime' },
{ field: 'list', caption: 'list', type: 'list',options:{items: people} },
{ field: 'combo', caption: 'combo', type: 'combo',options:{items: people} },
{ field: 'select', caption: 'select', type: 'select',options:{items: people} },
],
sortData: [ { field: 'recid', direction: 'asc' } ],
columns: [
{ field: 'text', caption: 'text', size: '90px', sortable: true ,editable: { type: 'text' }, frozen: true},
{ field: 'int', caption: 'int', size: '90px',render:'int', sortable: true ,editable: { type: 'int', min: 0, max: 32756 }},
{ field: 'float', caption: 'float', size: '90px', sortable: true,editable: { type: 'float' }},
{ field: 'money', caption: 'money', size: '90px',render:'money', sortable: true,editable: { type: 'money' } },
{ field: 'currency', caption: 'currency', size: '90px',render:'currency', sortable: true,editable: { type: 'currency' }},
{ field: 'percent', caption: 'percent', size: '90px',render:'percent', sortable: true,editable: { type: 'percent' , precision: 1}},
{ field: 'hex', caption: 'hex', size: '90px', sortable: true,editable: { type: 'hex' }},
{ field: 'alphanumeric', caption: 'alphanumeric', size: '90px', sortable: true,editable: { type: 'alphanumeric' }},
{ field: 'color', caption: 'color', size: '90px',editable: { type: 'color' }},
{ field: 'date', caption: 'date', size: '90px',render:'date', sortable: true,editable: { type: 'date' }},
{ field: 'time', caption: 'time', size: '90px',render:'time', sortable: true,editable: { type: 'time' } },
{ field: 'datetime', caption: 'datetime', size: '90px',render:'datetime', sortable: true,editable: { type: 'datetime' } },
{ field: 'list', caption: 'list', size: '90px',sortable: true,
editable: { type: 'list', items: people, showAll: true },
render: function (record, index, col_index) {
var html = this.getCellValue(index, col_index);
return html || '';
}},
{ field: 'combo', caption: 'combo', size: '90px', sortable: true,
editable: { type: 'combo', items:people, filter: false }
},
{ field: 'select', caption: 'select', size: '90px',sortable: true,
editable: { type: 'select', items: [{ id: '', text: '' }].concat(people) },
render: function (record, index, col_index) {
var html = '';
for (var p in people) {
if (people[p].id == this.getCellValue(index, col_index)) html = people[p].text;
}
return html;
}
},
{ field: 'check', caption: 'check', size: '60px', sortable: true, resizable: true, style: 'text-align: center',
editable: { type: 'checkbox', style: 'text-align: center' }
},
{ field: 'password', caption: 'password', size: '90px',render:'password', sortable: true,editable: { type: 'password' } },
{ field: 'toggle', caption: 'toggle', size: '90px',render:'toggle', sortable: true,editable: { type: 'toggle' } },
{ field: 'radio', caption: 'radio', size: '90px',render:'radio', sortable: true,editable: { type: 'radio' } },
]
});
});
</script>
</body>
</html>
またurl: ‘data/test.json’で指定しているJsonファイルの内容は下記になります。
{
"total": 2,
"records": [
{ "recid": 1, "text": "text", "int":"1", "float":"1.08", "money":"1000000", "currency":"50000","percent":"58.0","hex":"256","alphanumeric":"225asf","color":"9B24F4","date":"2020/07/07 12:54:06","time":"2020/07/07 12:54:06","datetime":"2020/07/07 12:54:06","list":{ "id": 2, "text": "BBB" },"combo":"AAA","select":"2","check": true,"password":"29","radio":""},
{ "recid": 2, "text": "text", "int":"1", "float":"1.08", "money":"1000000", "currency":"50000","percent":"58.0","hex":"256","alphanumeric":"225asf","color":"9B24F4","date":"2020/07/07 12:54:06","time":"2020/07/07 12:54:06","datetime":"2020/07/07 12:54:06","list":{ "id": 2, "text": "BBB" },"combo":"AAA","select":"2","check": true,"password":"29","radio":""}
]
}
適当な値を入力して検索リクエストする
画面上では検索項目として表示することはできましたが、実際に検索リクエストした場合どうなるか実行してみました。
以下が送信されたJsonを整形した内容になります。
{
"cmd": "get",
"selected": [],
"limit": 100,
"offset": 0,
"search": [
{
"field": "int",
"type": "int",
"operator": "between",
"value": [
1,
10
]
},
{
"field": "float",
"type": "float",
"operator": "less",
"value": 20
},
{
"field": "money",
"type": "money",
"operator": "more",
"value": 100
},
{
"field": "currency",
"type": "currency",
"operator": "more",
"value": 100
},
{
"field": "alphanumeric",
"type": "alphanumeric",
"operator": "begins",
"value": "aaaaa"
},
{
"field": "color",
"type": "color",
"operator": "contains",
"value": "006CE7"
},
{
"field": "date",
"type": "date",
"operator": "is",
"value": "2020/07/09"
},
{
"field": "time",
"type": "time",
"operator": "less",
"value": "9:00+am"
},
{
"field": "datetime",
"type": "datetime",
"operator": "is",
"value": "2020/07/25+0:00:00"
},
{
"field": "list",
"type": "list",
"operator": "is",
"value": 1,
"text": "AAA"
},
{
"field": "combo",
"type": "combo",
"operator": "is",
"value": "BBB"
},
{
"field": "select",
"type": "select",
"operator": "is",
"value": "1"
}
],
"searchLogic": "AND",
"sort": [
{
"field": "recid",
"direction": "asc"
}
]
}
